Among the different optical modules that shaped enterprise networking, 10GBASE-LR is one of the most widely recognized. It has been around for years, and even though faster standards have entered the market, LR modules continue to appear in countless networks. “LR” stands for long reach, and in this case, it means transmitting 10G Ethernet over single-mode fiber across distances up to 10 kilometers.
How 10GBASE-LR Works
The principle behind 10GBASE-LR is straightforward. It uses a single laser channel operating at 1310nm to transmit a 10 Gigabit signal over single-mode fiber. Unlike multimode optics, which require multiple parallel fibers for longer runs, LR modules need only two fibers—one for transmitting, one for receiving. This simplicity is part of what makes them so durable and practical in real-world deployments.

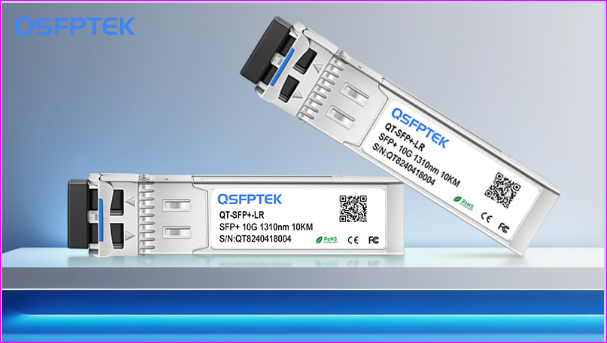

The module typically comes in the SFP+ form factor. That means it is hot-swappable and widely compatible with network switches and routers. Engineers can slide an LR transceiver into an available port and establish a stable long-distance 10G link almost instantly.
Why 10GBASE-LR Is Still Relevant
Some might ask why LR modules still matter when 25G, 40G, and 100G are now common. The answer is scale. Not every organization needs ultra-high bandwidth. Many enterprise backbones, regional ISPs, and research labs continue to rely on 10G connections. The cost is low, the technology is mature, and the hardware support is universal.
For applications like connecting data center racks, linking campus buildings, or creating enterprise backbones, 10GBASE-LR is more than enough. Its combination of distance and affordability keeps it in circulation, even as newer modules emerge.
Typical Use Cases
One of the most common scenarios is connecting buildings on a university campus. A few kilometers of single-mode fiber separate the library from the main IT center. With 10GBASE-LR modules on each side, the connection is strong, consistent, and inexpensive.
Another example appears in hospitals, where medical imaging files require higher throughput than 1G but don’t justify 40G. LR modules offer the right balance, linking facilities across town without complexity. Enterprises also use LR transceivers for uplinks from access switches to distribution layers, ensuring stable bandwidth at manageable cost.
Technical Considerations
Although LR modules are straightforward, network engineers should consider fiber cleanliness and connector loss. Over long spans, dust or scratches on connectors can weaken signals. Regular inspection and cleaning help maintain stability. Power draw is typically low, around 1 watt, which means LR optics barely add to overall energy usage in large deployments.
Market and Adoption
10GBASE-LR is one of the most cost-effective optics available today. Original branded modules are widely available, but third-party vendors such as QSFPTEK supply reliable, compatible alternatives at lower cost. This has kept LR modules attractive, especially for budget-conscious organizations.
Because the IEEE standard is well defined, interoperability across vendors is rarely a problem. This wide compatibility is another reason LR optics have lasted so long in the market.
Conclusion
10GBASE-LR may not be new, but it remains essential. For organizations that want affordable long-distance connectivity without the jump to higher speeds, LR is the logical choice. It provides stability, cost savings, and simplicity—all traits that keep it alive in the evolving networking landscape.
